Fiber Optic Backlight Assemblies

If you are unable to find what you are looking for on our website, feel free to contact our knowledgeable staff at Dolan-Jenner toll free at 1-800-83-FIBER for assistance. Dozens of variations available that are not listed below.

SPECIFICATIONS
Individual Fiber Diameter	0.002” (0.051 mm) Typically .001”(.025 mm) available
Acceptance Cone	68.0°
Numerical Aperture	.55
Fiber Material	Core: Borosilicate Cladding: Borosilicate
Temperature capabilities	QVABL, QVMABL, 70000215 and QVABL22 -40°F to 175°F (-40°C to 80°C) QVMABLHT -40°F to 400°F (-40°C to 205°C)

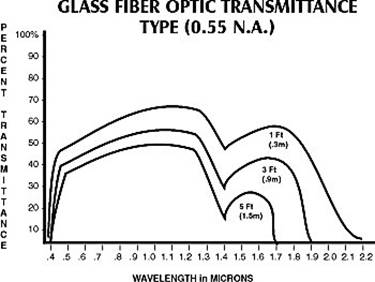

Spectral Transmittance	400nm-2000nm (.40-2.0 microns)
Minimum Bend Radius	1 ½” for 1/8” and 1/16” bundle diameter / 3” for ¼” bundle diameter
Maximum Breakage	2%
Housing Material	QVABL, QVABL22 and QVMABLHT- Anodized Black Aluminum Housing QVMABL and 70000215 – Black Nylatron Housing
Diffuser Material	QVABL, QVMABL, 70000215 and QVABL22 – Acrylic QVMABLHT - Glass

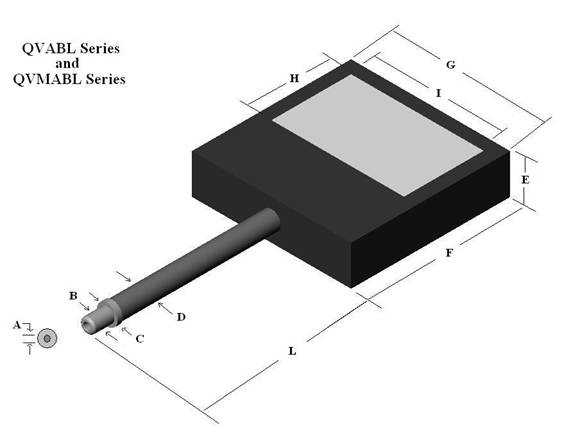

Model

Part Number

Common Fiber Bundle Diameter (A)

End Ferrule Diameter (B)

End Ferrule Shoulder Diameter (C)

Sheathing Diameter (D)

Housing Height (E)

Housing Length (F)

Housing Width

(G)

Window Length (H)

Window Width (I)

Total Cable Length (L)

Sheathing Material

QVABL48

QVABL68

QVABL72

QVABL108

SK92630048

SK92630068

SK92630072

SK92630108

.373”

(9.47mm)

.560

(14.22mm)

.74”

(18.80mm)

.63”

(16.0mm)

.75”

(19.1mm)

7.12”

(180.8mm)

4.75”

(120.7mm)

3.37”

(85.6mm)

4.25”

(108mm)

48” (1219.2 mm)

68” (1727.2 mm)

72” (1828.8 mm)

108” (2743 mm)

PVC

Monocoil

QVABL48M

700008690048

.373”

(9.47mm)

.588

(14.94mm)

.74”

(18.80mm)

.63”

(16.0mm)

.75”

(19.1mm)

7.12”

(180.8mm)

4.75”

(120.7mm)

3.37”

(85.6mm)

4.25”

(108mm)

48” (1219.2 mm)

PVC

Monocoil

QVMABL36

QVMABL48

QVMABL72

QVMABL79

QVMABL96

QVMABL100

QVMABL120

SK83560036

SK83560048

SK83560072

SK83560079

SK83560096

SK83560100

SK83560120

.250”

(6.35mm)

.312”

(7.92mm)

.422”

(10.72mm)

.40”

(10.16mm)

.630”

(16.0mm)

3.375”

(85.7mm)

2.05”

(52.1mm)

1.63”

(413mm)

1.86”

(47.2mm)

36” (914.40 mm)

48” (1219.2 mm)

72” (1828.8 mm)

79”(2006.6 mm)

96” (2438.4 mm)

100”(2540.0 mm)

120” (3048.0mm)

PVC

Monocoil

QVMABL36M

QVMABL48M

002400050036

002400050048

.250”

(6.35mm)

.588

(14.94mm)

.422”

(10.72mm)

.40”

(10.16mm)

.630”

(16.0mm)

3.375”

(85.7mm)

2.05”

(52.1mm)

1.63”

(413mm)

1.86”

(47.2mm)

36” (914.40 mm)

48” (1219.2 mm)

PVC

Monocoil

QVMABLHT

700000560048

.250”

(6.35mm)

.312”

(7.92mm)

.500”

(12.7mm)

.422”

(10.72mm)

.630”

(16.0mm)

3.375”

(85.7mm)

2.05”

(52.1mm)

1.63”

(413mm)

1.86”

(47.2mm)

48” (1219.2 mm)

Stainless Steel

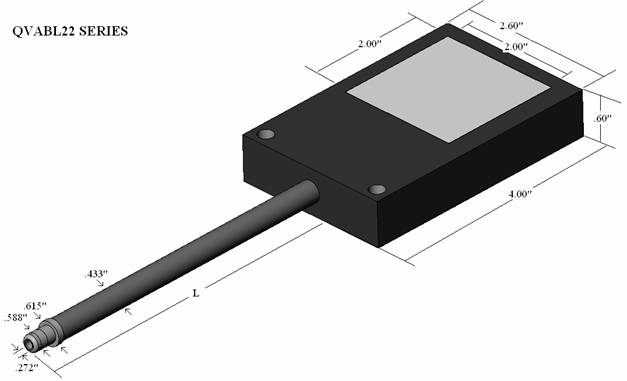

QVABL2236

QVABL2248

QVABL2272

700010280036

700010280048

700010280072

.272”

(6.91mm)

.588”

(14.94mm)

.615”

(15.62mm)

.433”

(11.00mm)

.600”

(15.24mm)

4.00”

(101.6mm)

2.60”

(66.0mm)

2.00”

(50.8mm)

2.00”

(50.8mm)

36” (914.40 mm)

48” (1219.2 mm)

72” (1828.8 mm)

PVC Monocoil

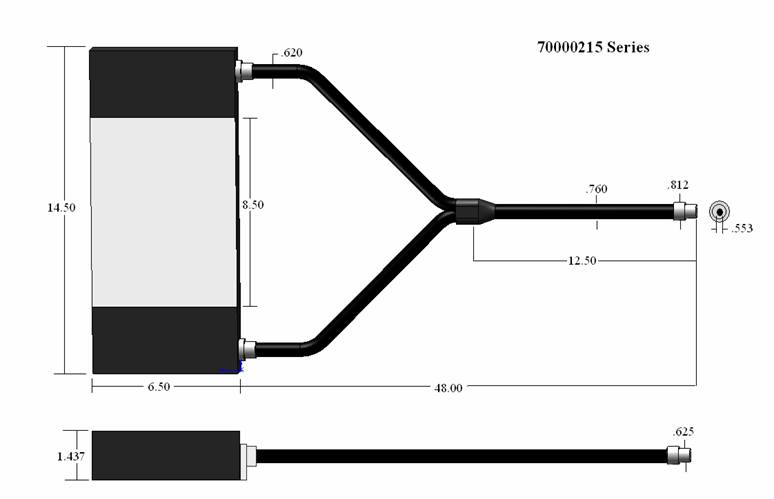

700002151048

.553”

(14.05mm)

.625”

(15.9mm)

.812”

(20.62mm)

.760”

(19.30mm)

1.437”

(36.50mm)

14.50”

(368.3mm)

6.50”

(165.1mm)

8.5”

(215.9mm)

6.50”

(165.1mm)

48” (1219.2 mm)

PVC Monocoil

Note: All Fiber optic assemblies available in custom length and size variations. If assembly does not suit your needs contact Dolan-Jenner Ind. knowledgeable staff toll free at
